MODUL

space is square

Product name

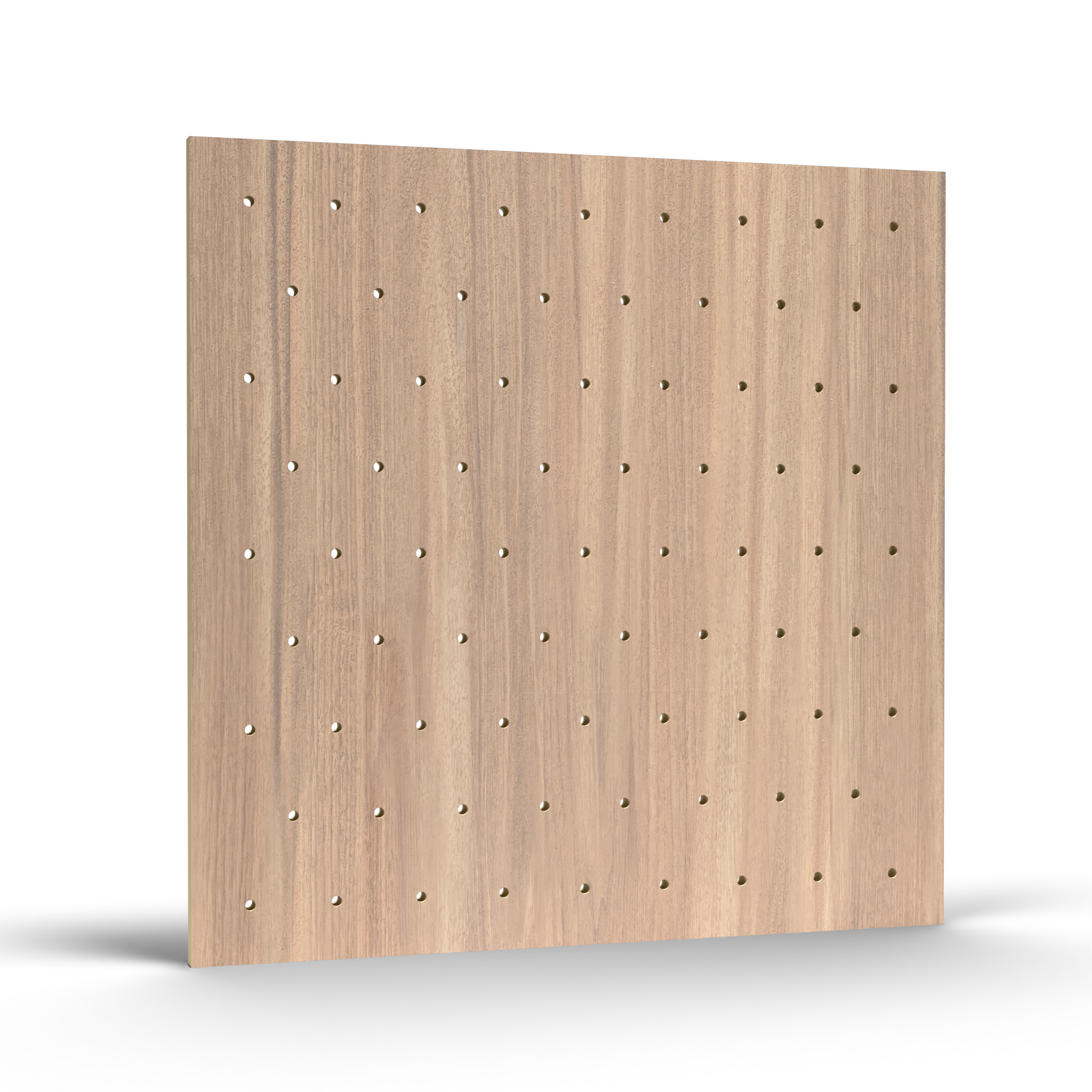

Modul 8/32D
Explore options
Technical specifications

Base material

Panel size

Weight kg/m2

Surface

Surface treatment

Fire classification

Humidity resistance

Acoustical treatment

Open area

Suspension

MDF, plywood or composite panels

600x600, 1200x600, 300x1200mm...

7,29

melamine lamination , reall wood veneer, HPL

Standard WB coating , oil /wax coating, staining etc.

up to B s1.d.0 , EU norm EN 13501-1

70% standard to 95% Humidax

Acoustical fleece 155g/m2

3,7%

Standard wood trims or Omega profile on 600mm axis -

Explore options
Technical specifications
Base material: MDF, plywood or composite panels Panel size: 600x600, 1200x600, 300x1200mm... Weight kg/m2: 7,29 Surface: melamine lamination , reall wood veneer, HPL Surface treatment: Standard WB coating , oil /wax coating, staining etc. Fire classification: up to B s1.d.0 , EU norm EN 13501-1 Humidity resistance: 70% standard to 95% Humidax Acoustical treatment: Acoustical fleece 155g/m2 Open area: 3,7% Suspension: Standard wood trims or Omega profile on 600mm axis -
Preview
3D model
Graph
Sound absorption
PRODUCT αw 125 250 500 1000 2000 4000
ADV 2-16+10-16 0.70 0.40 0.80 0.80 0.75 0.65 0.55
PRODUCT ADV
αw 0.70
125 0.40
250 0.80
500 0.80
1000 0.75
2000 0.65
4000 0.55
More about the product
Downloads
Gallery
Product in use
